설명
Highlights

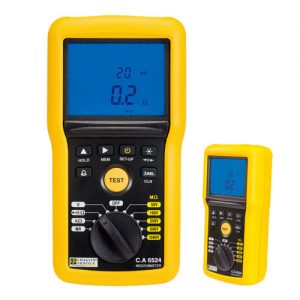

1 kV Insulation and Continuity Tester
Industrial maintenance
200 GΩ
Test voltage: 50-100-250-500-1 000 V
Manual / Lock / Duration modes, PI / DAR ratios
Alarms, ∆REL
Description
Ergonomics:The new C.A 652x & C.A 653x insulation testers are compact, lightweight and simple to use, offering greater comfort for users:
– Casing designed with 600V CAT IV safety and IP54 / IK04 protection for a comfortable grip in total safety with easy access to the TEST button, even when the user is wearing safety gloves
– Magnetic stand for fixing the product on a metal surface so that users have their hands free when measuring and reading the result
– Wide backlit screen with double digital display and logarithmic bargraph, secondary display showing the actual test voltage, the test current and the timer value, in addition to the value measured
– Remote control with torch for error-free identification of the points of measurement, even in environments with poor lighting
Insulation tests:
This new range is equipped with various insulation test voltages ranging from 10 V to 1 kV. The dynamic range for insulation measurement extends up to 200 GΩ, remaining compliant with the IEC 61557 standard up to 2 GΩ.
In addition to the manual mode, there are also new insulation test modes such as Lock mode, Timer mode and calculation of the PI & DARratios.
Continuity tests:
The continuity test function, which complies with the IEC 61557 standard (200 mA current), is enhanced on certain models with a 20 mA test current, with the advantage of prolonging battery life in normal use. This function is equipped with activefuselessprotection if a voltage is present.
Measurement adaptability:
On most of the models in the C.A 652X & C.A 653x range, you can activate an alarm threshold, choosing between 2 fixed thresholds and 1 customizable threshold for each measurement.
Furthermore, the ΔREL function can be used to display the measurements which differ from a reference measurement. The display shows the value of the variation and the percentage in relation to the reference.
Other functions:
DMM functions are available with measurement of voltage up to 700 V, frequency up to 800 Hz, resistance up to 999 kΩ and capacitance up to 10 µF.
Easy operation:
Analysis of the measurements is facilitated by storage of 300 measurements on the instrument. The memory capacity is extended to 1,300 locations for the versions with Bluetooth® communication. The Megohmmeter Transfer (MEG) software module, delivered as standard with the communicating versions, allows remote test activation with real-time graphical display and transfer of the stored measurements onto a PC. The values are then displayed by type of measurement.
The DataView® software suite (option) generates customized measurement reports which may include the location of the site and the contact details of the operator.
Specifications:
INSULATION: 50-100-250-500-1000 V test voltage
Measurement range: 200 GΩ
Test mode: Manual, Lock, Timer, PI, DAR
Continuity: 200mA / 20mA measurement current
Voltage measurement: 700 V
Frequency measurement: 15.3 – 800 Hz
Resistance measurement: 0 – 1,000 kΩ
Double display + logarithmic bargraph
Storage: 300 measurements
Magnetic mounting elements
Alarms
Powered by 6 x LR6 / AA batteries
Dimensions: 211 x 108 x 60 mm
Weight: 850 g
IP54 , safety category: 600 V CAT IV
