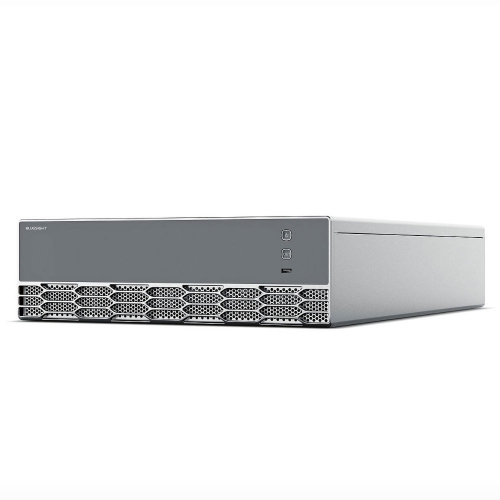

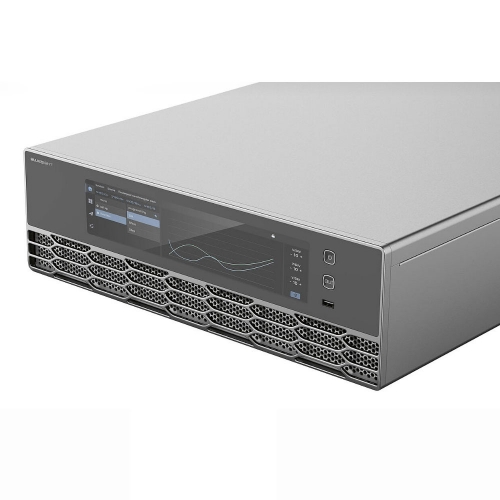

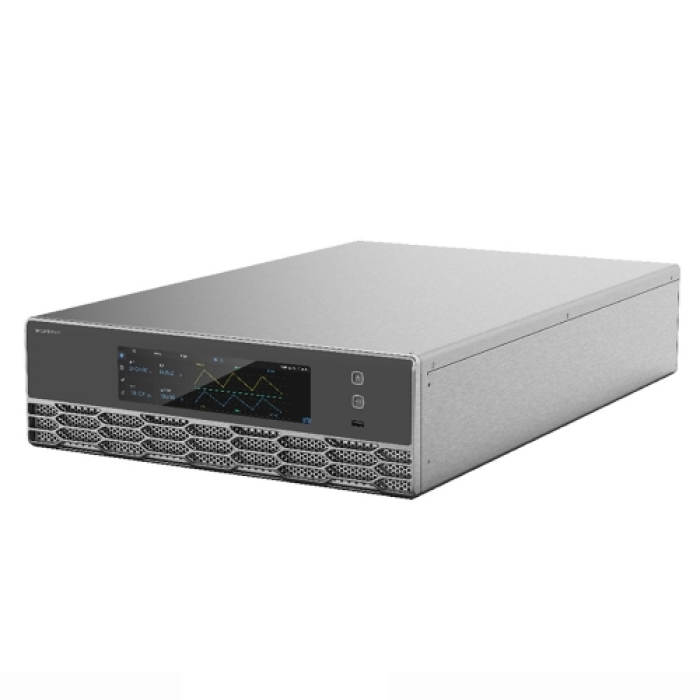

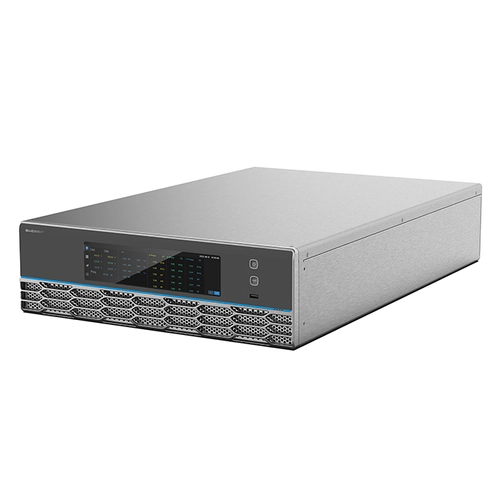

LC Series Programmable DC Source
☆Adopt high-frequency isolation solution, support constant voltage, constant current automatic switching;
☆Dynamic response of voltage and current in hundreds of microseconds;
☆Support multi-machine parallel use, easy power expansion, low harmonics;
☆With photovoltaic IV curve simulation function;
☆Support various types of battery simulation function;
☆Built-in function generator, support arbitrary waveform generation;
☆3U/30KW high power density;
☆Strong grid adaptability, support normal operation of weak grid;
☆With various protection functions (OVP, OCP, OPP, over-temperature, fan failure, etc.);
☆Support external data recording function, internal buffering, PC regularly reads measurement data from the machine;
☆Standard USB/CAN/LAN/RS485 communication interface;
LC 시리즈 프로그래밍 가능 DC 전원공급장치
☆고주파 절연 솔루션 채택, 정전압 및 정전류 자동 스위칭 지원;
☆수백 마이크로초 단위의 전압 및 전류 동적 응답;
☆다중 기기 병렬 사용 지원, 간편한 전력 확장, 낮은 고조파;
☆태양광 IV 곡선 시뮬레이션 기능;
☆다양한 유형의 배터리 시뮬레이션 기능 지원;
☆내장 함수 발생기, 임의 파형 생성 지원;
☆3U/30KW 고전력 밀도;
☆강력한 계통 적응성, 약한 계통의 정상 작동 지원;
☆다양한 보호 기능(OVP, OCP, OPP, 과열, 팬 고장 등);
☆외부 데이터 기록 기능 및 내부 버퍼링 지원, PC에서 기기의 측정 데이터를 정기적으로 읽어옴;
☆표준 USB/CAN/LAN/RS485 통신 인터페이스;
PRODUCT PARAMTERS
Specifications/Model | LC30-2000-60 |
Output voltage | 2000V |
Output current | ±60A |
Output power | ±30kW |
Energy feedback | Supporting energy feedback |
Isolation function | Input and output electrical isolation |
AC characteristics | |
Rated voltage | 400Vac |
Voltage range | 360Vac-440Vac |
Rated frequency | 50Hz/60Hz |
Frequency range | 47Hz-63Hz |
Wiring mode | Three-phase three-wire +PE |
DC voltage/current | |
Range of voltage | 0~2000Vdc |
Voltage setting accuracy | ≤0.02%FS |
Voltage setting resolution | 0.01V |
Voltage display accuracy | ≤0.02%FS |
Voltage display resolution | 0.01V |
Source regulation rate | 0.01%FS |
Load regulation rate | 0.01%FS |
Remote compensation | ≤40V |
Voltage ripple (20Hz-20MHz) | <2400mVpp/RMS 400mV |
Current regulation range | -60A~60A |
Current setting accuracy | ≤0.02%FS |
Current setting resolution | 0.01A |
Current display accuracy | ≤0.02%FS |
Current display resolution | 0.001A |
Current rise time | 550us（10%-90%） |
Current switching time | 7.6ms（-90%-90%）switching |
Battery simulation function | |
Battery typ | Different battery types such as lithium iron phosphate, ternary lithium, and lead-acid batteries can be simulated |
Parameter settings | Parameters such as battery type, number of batteries in series and parallel connection, SOC, and capacity of single battery |
Display parameters | Real-time SOC curve, current capacity, current electric energy, accumulated charging/discharging energy, accumulated charging/discharging electric energy, operation time, and other parameters |
IV curve simulation function | |
Open-circuit voltage range | 10-2000V |
Short-circuit current setting | 0A-60A |
Types of photovoltaic panel | CSi、TF、SCMC、HEC、customized |
Filling factor | 0.25~0.95 |
IV curve function | PV scanning, tracking efficiency test, PV curve(including multiple peaks)generation, dynamic and static MPPT tests, shadow shading, cloud drift |
Supporting standards | EN50530、Sandia、NB/T 32004、CGC/GF035、CGC/GF004 |
Programming function | |
Programming groups | 30 groups |
Programming steps | 300 steps |
Programming mode | Support a multi-sequence complex output mode through steps, cycle times, mode of execution, step jump etc. for tests under complex working conditions and programming tests of various parameters of voltage, current and power |
Trigger mode | Manual trigger, delay trigger |
Operating mode | Constant voltage, constant current, constant power, supporting programming, battery simulation, and settable IV curve |
Efficiency | ~95% |
Power factor | 0.99 |
Harmonic thd | ≤3% |
Protection function | Overvoltage, overcurrent, undervoltage, overtemperature, fan fault,etc |
Communication | interface USB、RS485、CAN、LAN、DB-26 interface |
Control mode | Touch screen, upper computer |
Heat dissipation | mode Forced air cooling |
Operating temperature | -10℃～50℃（derating above 40℃） |
Storage temperature | -20℃～70℃ |
Relative humidity | ≤80%（non-condensing） |
（W*H*D）Structure | size 440mm*132mm*671.5mm |
Weight | 35KG |
Altitude | ≤2000m |
