The MIPI Alliance creates and promotes specifications for the Mobile and Mobile-Influenced markets. These specifications enable and software interfaces that simplify the integration of components built into a device.
＊Supports UFS3.0, MIPI UniPro v1.8 and M-PHY v4.1 up to HS-G4B
＊Analyze UniPro and UFS Decoding
＊Integrated Unipro & UFS analyzer exerciser
＊Unipro and UFS CTS compliance
설명
The MIPI Alliance creates and promotes specifications for the Mobile and Mobile-Influenced markets. These specifications enable and software interfaces that simplify the integration of components built into a device, from the antenna and modem to peripherals and the application processor.
Some of the specifications being designed and promoted are A-PHY, C-PHY, D-PHY, M-PHY, Camera Serial Interface (CSI), Display Serial Interface (DSI) I3C, Touch, UniPro.

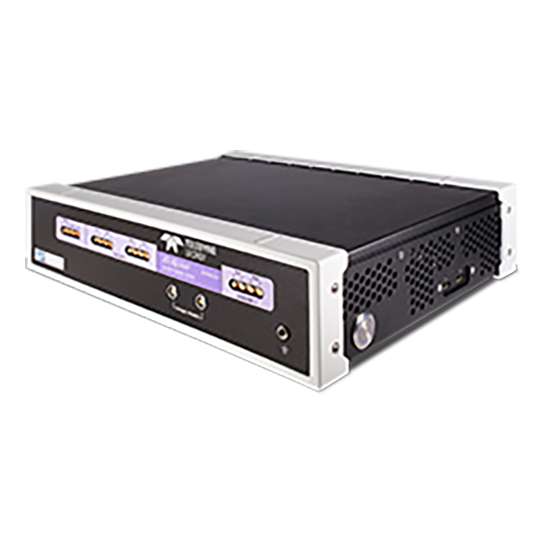

The Eclipse M42x updates the Teledyne LeCroy family of UniPro/UFS protocol analyzers and exercisers. Supporting MIPI® M-PHYTM Gear4 at speeds up to 11.8Gbps, the Eclipse M42x stands as the markets most complete analyzer/exerciser. The Eclipse M42x analyzes bi-directional UniPro and UFS traffic, performing protocol sequence and timing analysis and packet header and payload inspection, to provide complete protocol debug and analysis of UFS and UniPro devices.
The Eclipse M42x, with support for Gear 4 speeds up to 11.8GBps, is the right tool for engineers and developers who need to ensure the correct and efficient operation of technologies employing the high data transfer speeds of the UniPro/UFS specifications supported by M-PHY interfaces. Teledyne LeCroy’s UniPro M Series Protocol Suite provides all the views you need to debug captured data. The Events window shows activity on the bus as a complete picture of all events, and allows drill-down to the lowest level bytes. This unique time-aligned display includes fillers, Prepare, SYNC, Hibern8, sleep, stall and other M-PHY level packets. Add in the Trace Validation Expert system analysis, the Eclipse M42x delivers protocol analysis, compliance conformance verification, and automated quality testing in one powerful package.
The Advanced analysis features of the Eclipse M42x Analyzer/Exerciser includes:
Download Spec Sheet
For more information, please download the Spec Sheet which includes full technical specifications.
eclipse_unipro_ufs_family_v1018
