With Signal Integrity Studio, users analyze the effects that impedance mismatches, losses, emphasis and equalization choices have on signal integrity characteristics of a device under test. S-parameters measured from an imported Touchstone file are used to emulate or de-embed a channel.
설명

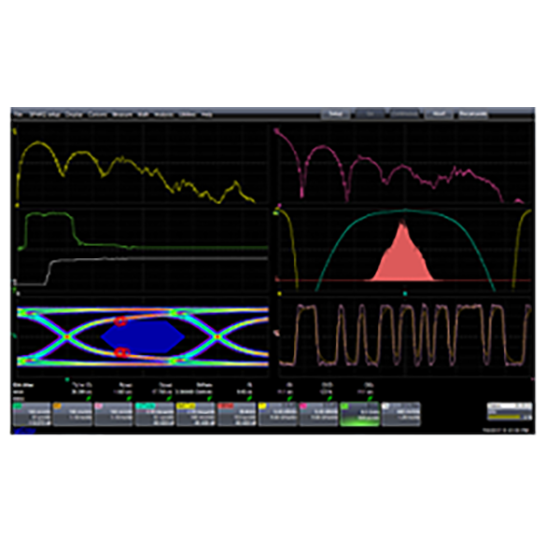

With Signal Integrity Studio, users analyze the effects that impedance mismatches, losses, emphasis and equalization choices have on signal integrity characteristics of a device under test. S-parameters measured from an imported Touchstone file are used to emulate or de-embed a channel. Models for emphasis and equalization and a simulated waveform are configured by the user, and the resulting eye diagram can be viewed and analyzed to provide insight into the eye closure and jitter characteristics of the DUT and receiver design.
SI Studio runs on top of the Teledyne LeCroy SPARQ software application – users purchasing the standalone version of SI Studio receive a USB license key, which unlocks access to Signal Integrity Studio features of the SPARQ application, without the need to connect to a SPARQ.
For the version of Signal Integrity Studio that is an option for the SPARQ Series Signal Integrity Network Analyzers, see SI Studio for Teledyne LeCroy SPARQ.
Download Spec Sheet
For more information, please download the Spec Sheet which includes full technical specifications.
signal_integrity_studio_datasheet
