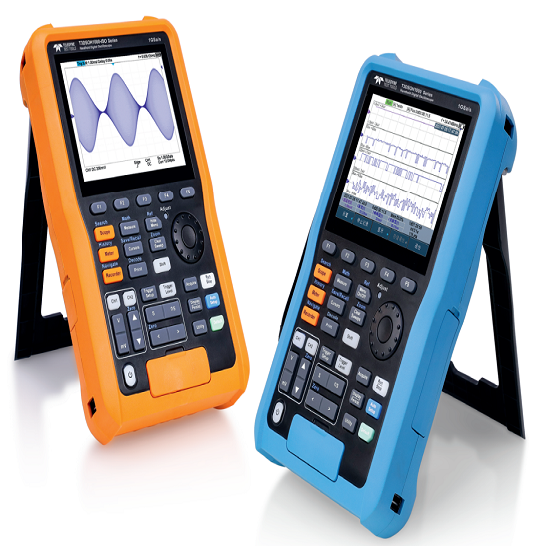

The Teledyne Test Tools new T3DSOH1000 and T3DSOH1000-ISO series of handheld, 8 bit Oscilloscopes come with integrated oscilloscope, recorder and Multimeter functions in a convenient and portable design. Weighing only 1.7kg (3.8 lb), the battery powered T3DSOH series and be used in field testing, automotive R&D as well as industrial maintenance.
설명
T3DSOH1102 100 MHz, 1 GS/s Single Channel, 2 CH, 12 Mpts/Ch, HH DSO, 5.6″ Color Display
T3DSOH1102-ISO 100 MHz, 1 GS/s Single Channel, 2 CH, 12 Mpts/Ch, HH DSO with Isolated Channels, 5.6″ Color Display
T3DSOH1202 200 MHz, 1 GS/s Single Channel, 2 CH, 12 Mpts/Ch, HH DSO, 5.6″ Color Display
T3DSOH1202-ISO 200 MHz, 1 GS/s Single Channel, 2 CH, 12 Mpts/Ch, HH DSO with Isolated Channels, 5.6″ Color Display
The new T3DSOH series of Handheld Oscilloscope series come in bandwidths of 100 MHz and 200 MHz all with two analog channels. In addition to a standard feature range of handheld models the additional T3DSOH1000-ISO models offer customers full isolation between the two oscilloscope channels, one multimeter channel, a power adapter, and the USB host/device port. Each channel features a single ADC with 1 GSa/s maximum sample rate and a single memory module with 12 Mpts memory depth. When two channels are enabled, each channel has a sample rate of 500 MSa/s and a standard record length of 6 Mpts. When only a single channel is activated, the maximum sample rate is 1 GSa/s and the maximum record length is 12 Mpts. The series comes with built in Serial bus triggering and decode for I2C, SPI, UART, CAN and LIN Protocols.
배송안내
배송 지역 | 대한민국 전지역
배송비 | 2,500원 (50,000원 이상 결제시 무료배송)
배송기간 | 주말 공휴일 제외 2~5일
- 모든 배송은 택배사 사정으로 지연될 수 있습니다.
교환 및 반품 안내
- 고객 변심으로 인한 교환/반품은 상품 수령 후 14일 이내 가능합니다.
- 고객 귀책 사유로 인한 반품의 경우 왕복 택배비는 고객 부담입니다.
- 반품접수 기한이 지난 경우, 제품 및 패키지 훼손, 사용 흔적이 있는 제품은 교환/반품이 불가합니다.
설명
T3DSOH1102 100 MHz, 1 GS/s Single Channel, 2 CH, 12 Mpts/Ch, HH DSO, 5.6″ Color Display
T3DSOH1102-ISO 100 MHz, 1 GS/s Single Channel, 2 CH, 12 Mpts/Ch, HH DSO with Isolated Channels, 5.6″ Color Display
T3DSOH1202 200 MHz, 1 GS/s Single Channel, 2 CH, 12 Mpts/Ch, HH DSO, 5.6″ Color Display
T3DSOH1202-ISO 200 MHz, 1 GS/s Single Channel, 2 CH, 12 Mpts/Ch, HH DSO with Isolated Channels, 5.6″ Color Display
The new T3DSOH series of Handheld Oscilloscope series come in bandwidths of 100 MHz and 200 MHz all with two analog channels. In addition to a standard feature range of handheld models the additional T3DSOH1000-ISO models offer customers full isolation between the two oscilloscope channels, one multimeter channel, a power adapter, and the USB host/device port. Each channel features a single ADC with 1 GSa/s maximum sample rate and a single memory module with 12 Mpts memory depth. When two channels are enabled, each channel has a sample rate of 500 MSa/s and a standard record length of 6 Mpts. When only a single channel is activated, the maximum sample rate is 1 GSa/s and the maximum record length is 12 Mpts. The series comes with built in Serial bus triggering and decode for I2C, SPI, UART, CAN and LIN Protocols.
