The Nano-MTA Series are single axis and two axis piezo nanopositioning mirror tip/tilt actuators. With nanoradian resolution, the Nano-MTA Series is ideal for applications involving laser beam steering, tracking, and scanning. Internal position sensors utilizing proprietary PicoQ® technology provide absolute, repeatable position measurement under closed loop control. The Nano-MTA Series is compatible with either the Nano-Drive® or Nano-Drive®85 controllers. Both controllers include sensor electronics, proportional integral feedback control, and 150V amplifiers. When used with the high power Nano-Drive®85 controller, the Nano-MTA Series is capable of continuous, high speed scans at 400 Hz and step response times down to 2 milliseconds.
제품 설명
The Nano-MTA Series are single axis and two axis piezo nanopositioning mirror tip/tilt actuators. With nanoradian resolution, the Nano-MTA Series is ideal for applications involving laser beam steering, tracking, and scanning. Internal position sensors utilizing proprietary PicoQ® technology provide absolute, repeatable position measurement under closed loop control. The Nano-MTA Series is compatible with either the Nano-Drive® or Nano-Drive®85 controllers. Both controllers include sensor electronics, proportional integral feedback control, and 150V amplifiers. When used with the high power Nano-Drive®85 controller, the Nano-MTA Series is capable of continuous, high speed scans at 400 Hz and step response times down to 2 milliseconds.
제품 특징
 /center> | Typical Applications |

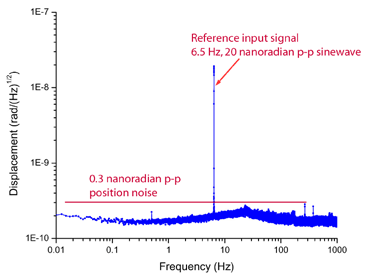

Ultra Low Position Noise: Nano-MTA2 Position Noise Power Spectrum
Measured position noise of the Nano-MTA2 shows the system's exceptional stability.
Technical Specifications
| Range of motion (Nano-MTA2) | 2.0 mradian |
| Resolution | 4.0 nradian |
| Range of motion (Nano-MTA2X) | 5.0 mradian |
| Resolution | 10 nradian |
| Range of motion (Nano-MTA2X10) | 10.0 mradian |
| Resolution | 20 nradian |
| Resonant Frequency† - Nano-MTA2/Nano-MTA2X/Nano-MTA2X10 | |
| X Axis (2mrad/5mrad/10mrad) | 3.2 kHz/2.8kHz/1.6kHz ±20% |
| Y Axis (2mrad/5mrad/10mrad) | 1.25 kHz/800Hz/435Hz ±20% |
| Scanning Speed | up to 400 Hz |
| Optics | 25mm diameter mirror mounting area* |
| Body Material | Al or Invar and Titanium |
| Controller | Nano-Drive®/Nano-Drive®85 |
| † Nano-MTA2/2X resonant frequency is with a 25mm diameter x 3mm glass mirror. | |
| * Mirrors can be attached to the Nano-MTA Series using Milbond adhesive available from Edmund Optics - stock number NT53-288. |
Additional Information | |
Nano-MTA/Nano-MTAX Drawing | Nano-MTA Series Catalog Pages |
Nano-MTA2/Nano-MTA2X Drawing | Nano-MTA2X10 Drawing |
