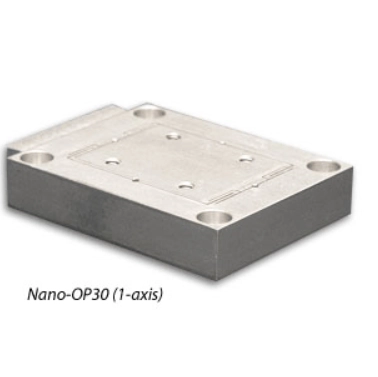

The Nano-OP Series is a versatile group of compact piezo nanopositioners which can be configured to fit into a wide variety of applications. Individual, single axis stages may be combined to form multi-axis systems. The Nano-OP Series are available with 30, 65, and 100 micron ranges of motion. They can be constructed from aluminum, invar, or titanium and can be customized to suit unique requirements. Internal position sensors utilizing proprietary PicoQ® technology provide absolute, repeatable position measurement with picometer resolution under closed loop control.

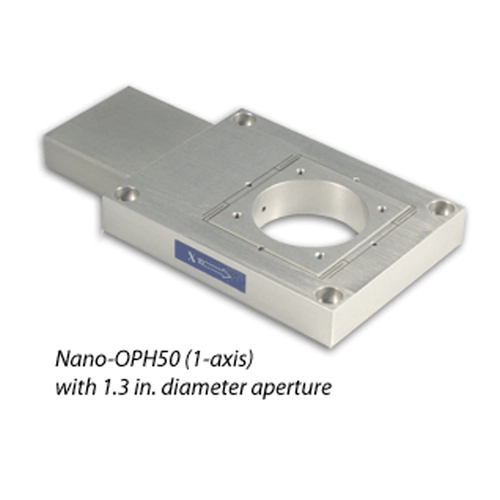

For applications requiring high speed objective lens positioning, see the High Speed Lens Positioner page. The Nano-OP Series is available with metric tapped holes, see the Nano-OP-M Series Drawing. For applications requiring a through hole, see the Nano-OPH Series.
 |  |  |
제품 설명
The Nano-OP Series is a versatile group of compact piezo nanopositioners which can be configured to fit into a wide variety of applications. Individual, single axis stages may be combined to form multi-axis systems. The Nano-OP Series are available with 30, 65, and 100 micron ranges of motion. They can be constructed from aluminum, invar, or titanium and can be customized to suit unique requirements. Internal position sensors utilizing proprietary PicoQ® technology provide absolute, repeatable position measurement with picometer resolution under closed loop control.
For applications requiring high speed objective lens positioning, see the High Speed Lens Positioner page. The Nano-OP Series is available with metric tapped holes, see the Nano-OP-M Series Drawing. For applications requiring a through hole, see the Nano-OPH Series.
제품 특징 및 응용 프로그램
Features | Typical Applications |
기술 사양
Technical Specifications | |
| Range of motion (Nano-OP30) | 30 μm |
| Range of motion (Nano-OP65) | 65 μm |
| Range of motion (Nano-OP100) | 100 μm |
| Resolution (30/65/100 μm) | 0.06/0.13/0.2 nm |
| Resonant Frequency | 4 kHz ±20% |
| Resonant Frequency (100g load) | 2 kHz ±20% |
| Stiffness | 3.0 N/μm ±20% |
| θ roll, θ pitch (typical) | ≤1 μrad |
| θ yaw (typical) | ≤2 μrad |
| Recommended max. load (horizontal)* | 1.0 kg |
| Recommended max. load (vertical)* | 0.5 kg |
| Body Material | Al, Invar or Titanium |
| Controller | Nano-Drive® |
Nano-OP30 Position Noise Spectrum
Additional Information | |
Nano-OP Series Drawing | Nano-OP Series Catalog Pages |
| Nano-OP-M Series Drawing special order version with metric tapped holes  | |
