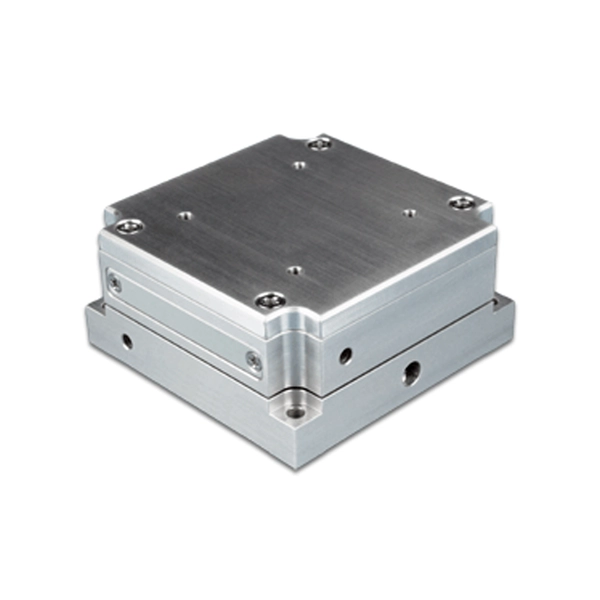

The Nano-SPM200 is a compact two axis (XY) piezo nanopositioning system constructed from aluminum. The compact design of the Nano-SPM200 makes it ideal for integration into scanning probe microscopy systems. Internal position sensors combined with the closed loop Nano-Drive controller to provide sub-nanometer positioning resolution and long term stability. Independent flexure guided motion for each axis provides mechanical isolation and ensures minimum cross-talk between axes. Samples can be mounted in any location on the flat top surface and secured with the four threaded mounting holes. The Nano-SPM200 is the ideal XY scanning stage for use with the MadPLL® system. See the SPM-M Kit for an example of how to combine Mad City Labs equipment to build an AFM or NSOM.
제품 설명
The Nano-SPM200 is a compact two axis (XY) piezo nanopositioning system constructed from aluminum. The compact design of the Nano-SPM200 makes it ideal for integration into scanning probe microscopy systems. Internal position sensors combined with the closed loop Nano-Drive controller to provide sub-nanometer positioning resolution and long term stability. Independent flexure guided motion for each axis provides mechanical isolation and ensures minimum cross-talk between axes. Samples can be mounted in any location on the flat top surface and secured with the four threaded mounting holes. The Nano-SPM200 is the ideal XY scanning stage for use with the MadPLL® system. See the SPM-M Kit for an example of how to combine Mad City Labs equipment to build an AFM or NSOM.
제품 특징
Features | Typical Applications |
기술 사양
| Range of motion (XY) | 200 μm |
| Resolution | 0.4 nm |
| Resonant Frequency (X) | 300 Hz ±20% |
| Resonant Frequency (Y) | 300 Hz ±20% |
| Stiffness | 1.0 N/μm |
| Recommended max. load (horizontal)* | 0.5 kg |
| Recommended max. load (vertical)* | 0.2 kg |
| Body Material | Aluminum |
| Controller | Nano-Drive® |
* Larger load requirements should be discussed with our engineering staff.
Additional Information | ||
Nano-SPM200 Drawing | Nano-SPM200 Catalog Pages | AFM Video Tutorial |
