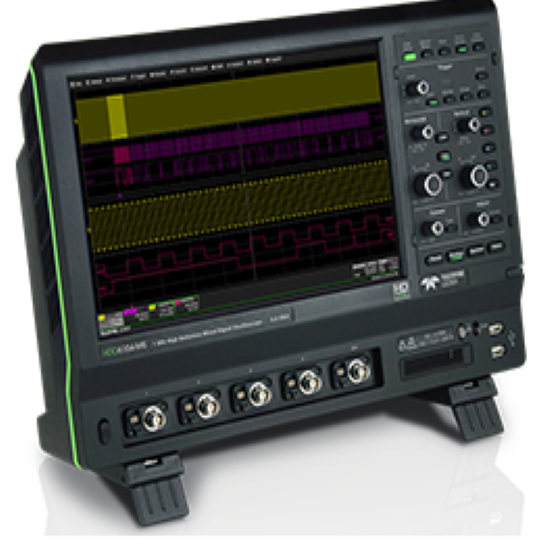

설명
- 12-bit ADC resolution, up to 15 bits with enhanced resolution
- 350 MHz, 500 MHz and 1 GHz bandwidths
- Long Memory ? up to 250 Mpts/Ch
- 12.1” toucn screen display
- Spectrum Analyzer Mode
- WaveScan ? Advanced Search and Find
- History Mode ? Waveform Playback
- Power Analysis Software
- JITKIT Clock-Data Jitter Analysis
- Serial Data Trigger and Decode
- PROTObus MAG Serial Data Debug Toolkit
- LabNotebook Report Generation
- Advanced Trigger Tools including TriggerScan and Software Assisted Trigger
- 16 Digital Channels with 1.25 GS/s Sample Rate
- Mixed Signal Debug Capabilities
- Analog and Digital Cross Pattern Triggering
- Digital Pattern Search and Find
- Analog and Digital Timing Measurements
- Logic Gate Emulation
HD4096 High Definition Technology
HD4096 high definition technology enables oscilloscopes to capture and display signals of up to 1 GHz with high sample rate and 16 times more resolution than other oscilloscopes.
Benefits of HD4096 Technology
Waveforms captured and displayed on oscilloscopes with HD4096 technology are cleaner and crisper. Signal details often lost in the noise are clearly visible and easy to distinguish HD4096 enables oscilloscopes to deliver unmatched measurement precision for improved debug and analysis.
Comprehensive Analysis Tools
Comprehensive set of waveform math and measurement tools extends the debugging and analysis capability.
Complete Set of Applications
Complete set of solutions available for embedded, digital, power and automotive designs extends analysis
Spectrum Analyzer Interface
View signal details in the frequency domain with a spectrum analyzer style user interface
Identify and Isolate Problems Fast
Quickly locate analog or digital waveforms for runts, glitches or other anomolies with WaveScan
History Mode Waveform Playback
Scroll back in time to isolate anomalies and quickly find the source of the problem.
Touch Screen Simplicity
Easily control channels, trigger, math and measurements with the large multi-touch display and intuitive interface.
PROTObus MAG Serial Debug Toolkit
PROTObus MAG Toolkit extends serial data trigger and decode functions with integrated parameter measurements
Simple Power Measurements
Measure and analyze operating characteristics of power conversion devices and circuits
Sequence Mode
Capture many fast pulses separated by long delays in quick succession while maintaining fast sampling
Serial Bus Trigger and Decode
View decoded protocol information on top of physical layer waveforms and trigger on protocol specific messages
Save, Document, Report
Save all results and data with a single button press and create custom reports with LabNotebook
Cross Triggering
Flexible analog and digital cross-pattern triggering across all 20 channels
Digital Timing Measurements
Perform timing measurements on digital signals and analyze with trends, statistics and histicons
Parallel Pattern Search
Find a digital pattern across many digital lines using the parallel pattern search capability of WaveScan
Activity Indicators
Quickly see the state of all the digital lines at the same time using convenient activity indicators.
Logic Gate Emulation
Simulate complete digital designs using logic gate emulation.
