설명

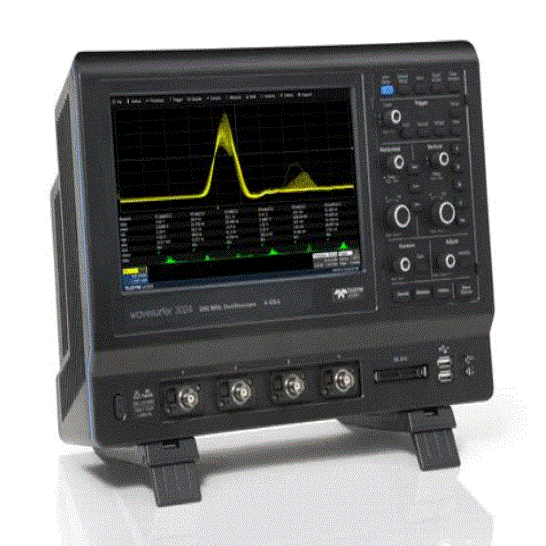

Key Features
- 100 MHz, 200 MHz, 350 MHz, 500 MHz and 1 GHz bandwidths
- Up to 4 GS/s sample rate
- Long Memory – up to 20 Mpts
- 10.1” capacitive touch screen display
- 16 Digital Channel MSO option
- MAUI – Most Advanced User Interface
- Designed for Touch
- Built for Simplicity
- Made to Solve
- Advanced Anomaly Detection
- Fast Waveform Update
- History Mode – Waveform Playback
- WaveScan – Search and Find
- Multi-Instrument Capabilities
- Protocol Analysis – Serial Trigger and Decode
- Waveform Generation – Built-in Function Generator
- Digital Voltmeter and Frequency Counter
- Future Proof
- Upgradeable Bandwidth
- Field Upgradable Software and Hardware Options
Superior User Experience
MAUI is the most advanced oscilloscope user interface. It is designed for touch, built for simplicity, and made to solve.
Biggest Touch Display
A large capacitive touch screen enables accessible and responsive touch operation. The 10.1” display is 30% larger than competitive offerings, providing more waveform viewing area.
Advanced Anomaly Detection
A fast waveform update rate, used in conjunction with history mode, WaveScan, sequence mode, and mask testing facilitates outstanding waveform anomaly detection.
Powerful, Deep Toolbox
The standard collection of math, measurement, debug, and documentation tools provides unsurpassed analysis capabilities.
Features
WaveScan Advanced Search
- Locate unusual events in a single capture or scan for an anomalies across many acquisitions
- More than 20 modes can be applied to analog or digital channels
Pass/Fail Mask Testing
- Mask testing to quickly identify anomalies and mark their location.
- A history of these pass/fail results can be displayed
Fast Waveform Update
- An update rate of over 130,000 waveforms per second will easily display random or infrequent events
- Changes over time can be seen with the intensity graded persistence display
History Mode Waveform Playback
- View previous waveforms to discover past anomalies
- Use cursors and measurement parameters to quickly identify the source of problems
- History mode is always enabled and accessible through the click of a button
Powerful Triggering
- Basic triggering such as edge or width can be used for everyday solutions
- Qualified triggering enables the ability to trigger across multiple channels
- Powerful logic triggering can be setup to catch a parallel pattern
- Smart triggers such as runt, dropout, or interval help isolate anomalies quickly
- Serial data triggering adds protocol specific triggers
Advanced Waveform Capture with Segmented Memory
- Save waveforms into segmented memory
- Capture fast pulses in quick succession or events separated by long time intervals
- Combine Sequence mode with advanced triggers to isolate rare events
Protocol Analysis with Serial Trigger and Decode
- Intuitive, color-coded overlay presented in binary, hex, or decimal
- Trigger capabilities allow for a wide range of different events
- All decoded data is displayed in an interactive table
Precise Measurements with Digital Voltmeter
- 4-digit digital voltmeter
- 5-digit frequency counter
- Any channel can be selected as a source
- Voltage readings can be set to DC, DC RMS, or AC RMS
- Measurements will continue to be updated even when triggering is stopped
Logic Analysis with 16 Channel Mixed Signal Capability
- Simultaneously view, measure, and analyze both analog and 16 digital signals
- Analog and digital channels can be incorporated into a single pattern trigger
- WaveScan, trends, statistics, and histicons provide insight to find anomalies in digital waveforms
Waveform Generation with Built-in Function Generator
- Frequencies of up to 25 MHz
- Waveform Options: sine, square, pulse, ramp, triangle, noise and DC waveforms
- Rear panel BNC output
- Saved waveforms can be uploaded into the WaveSource to generate arbitrary waveforms
Advanced Math Capabilities
- A deep set of 20 math functions provide quick insight into waveforms
- Dedicated Grid for Math Traces
- Any Channel, Measurement, or Analysis Package can have a math function applied
Superior Measurement Tools
- 24 measurement parameters
- Additional statistics and histicons can be applied to each parameter
- Trends can be displayed for any measurement
LabNotebook Documentation Tool
- Save all displayed waveforms, oscilloscope setup file, and a screen image with a single button press
- Recall LabNotebook files onto the oscilloscope
- View the LabNotebook files on a PC using WaveStudio
