About

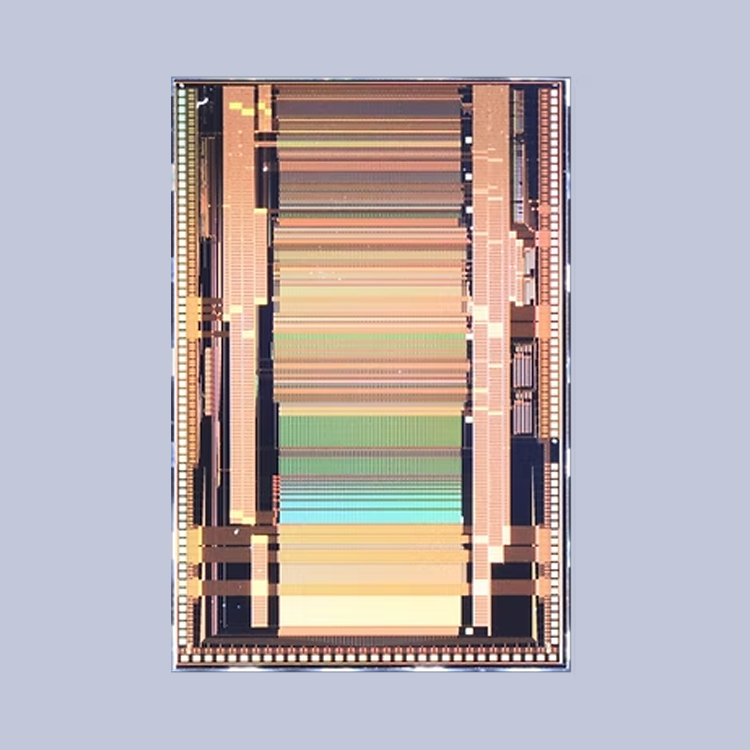

The VATA64HDR16.2 is a 64-channel charge sensitive amplifier for SiPM read-out. Each channel features preamplifiers, “slow” shapers, sample/hold, multiplexed analogue readout and calibration facilities. Each channel has a “fast” shaper that gives a trigger signal and a timing unit to record the time difference between triggers in different channels. Supported by the Galao ROIC Development Kit.
Publications
Meier, Dirk, et al. “An ASIC for SiPM/MPPC readout.” Nuclear Science Symposium Conference Record (NSS/MIC), 2010 IEEE (2010)
Bagliesi et al., “A custom front-end ASIC for the readout and timing of 64 SiPM Photosensors”, Nuclear Physics B (Proc. Suppl.) 215 (2011) 344–348 [http://dx.doi.org/10.1016/j.nuclphysbps.2011.04.049]
Stankova et al., “Data acquisition system for the readout of SiPM matrix with the VATA64HDR16 front-end ASIC”, Nuclear Science Symposium and Medical Imaging Conference (NSS/MIC), 2011 IEEE (2011)
Stankova, Vera, et al., “Multichannel DAQ system for SiPM matrices.” Nuclear Science Symposium and Medical Imaging Conference (NSS/MIC), 2012 IEEE (2012)
| Detectors | SiPM, MPPC |
| Application | Imaging, Spectroscopy |
| Number of inputs | 64 |
| Input charge range | -20 pC to 55 pC |
| Shaping time | 100 ns (VA), 50 ns (TA) |
| Nominal capacitive load | 200 pF |
| Equivalent Noise Charge (ENC) | 7490e to 9987e |
| Trigger threshold | Adjustable |
| Trigger outputs | Common trigger for all channels Common trigger output and TAC (time-to-analog converter) and global off-chip trigger line |
| Outputs | Multiplexed pulse height |
| Test and calibration | Calibration circuit and internal reference channel |
| Power dissipation | < 15 mW / channel |
배송안내
배송 지역 | 대한민국 전지역
배송비 | 2,500원 (50,000원 이상 결제시 무료배송)
배송기간 | 주말 공휴일 제외 2~5일
- 모든 배송은 택배사 사정으로 지연될 수 있습니다.
교환 및 반품 안내
- 고객 변심으로 인한 교환/반품은 상품 수령 후 14일 이내 가능합니다.
- 고객 귀책 사유로 인한 반품의 경우 왕복 택배비는 고객 부담입니다.
- 반품접수 기한이 지난 경우, 제품 및 패키지 훼손, 사용 흔적이 있는 제품은 교환/반품이 불가합니다.
About

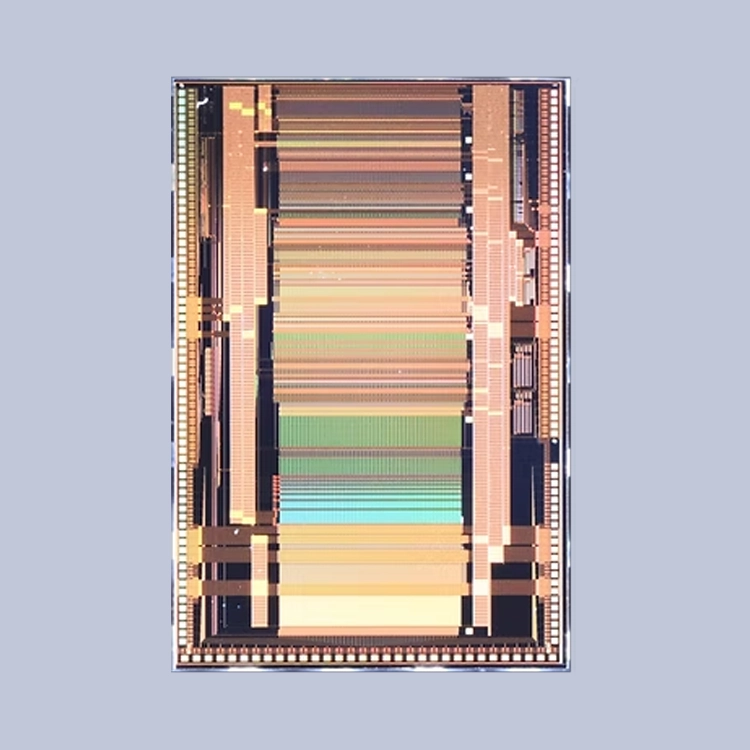

The VATA64HDR16.2 is a 64-channel charge sensitive amplifier for SiPM read-out. Each channel features preamplifiers, “slow” shapers, sample/hold, multiplexed analogue readout and calibration facilities. Each channel has a “fast” shaper that gives a trigger signal and a timing unit to record the time difference between triggers in different channels. Supported by the Galao ROIC Development Kit.
