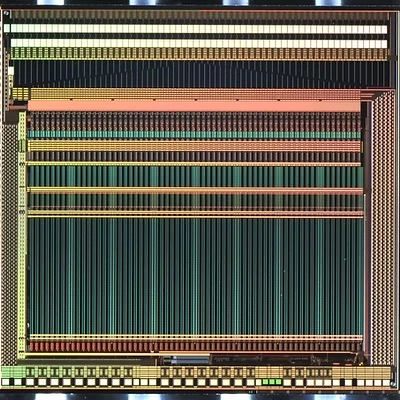

The IDE1140 (previously VA140) is a 64 channel low-noise/low power high dynamic range charge sensitive preamplifier-shaper circuit, with simultaneous sample and hold, multiplexed analogue readout, calibration facilities and internally generated biases.
About
The IDE1140 (previously VA140) is a 64 channel low-noise/low power high dynamic range charge sensitive preamplifier-shaper circuit, with simultaneous sample and hold, multiplexed analogue readout, calibration facilities and internally generated biases. High integration time. The pre-amplification stage is optimized for a 50pF detector capacitive load. The ASIC can use an active current compensation by introducing a MOS source/sink at the preamplifier’s input. The IDE1140 is an updated version of the VA64HDR9A ASIC.
Publications
J. Alcaraz, et al., 2015, “The alpha magnetic spectrometer silicon tracker: Performance results with protons and helium nuclei”, Nuclear Instruments and Methods in Physics Research Section A: Accelerators, Spectrometers, Detectors and Associated Equipment, Volume 593, Issue 3, Pages 376–398 (2008)
Dong, Yifan, et al., “DAMPE silicon tracker on-board data compression algorithm.” arXiv preprint arXiv:1503.00415 (2015) [arXiv:1503.00415]
Zhang, Fei, et al., “A prototype silicon detector system for space cosmic-ray charge measurement.” Chinese Physics C, Vol. 38, No. 6, 066101 (2014) [doi:10.1088/1674-1137/38/6/066101]
Fan, Rui Rui, et al., “The silicon matrix for the prototype for the Dark Matter Particle Explorer.” Nuclear Science Symposium and Medical Imaging Conference (NSS/MIC), 2013 IEEE (2013) [doi:10.1109/NSSMIC.2013.6829696]
Zhang, Fei, et al., “Design of the readout electronics for the DAMPE Silicon Tracker detector” Chinese Physics C, Vol. 40, No. 11, 116101 (2016) [doi:10.1088/1674-1137/40/11/116101]
| Detectors | Silicon (Si) |
| Application | Imaging, Spectroscopy, Calorimetry |
| Number of inputs | 64 |
| Input charge range | ±200 fC |
| Shaping time | 5 µs to 8 μs |
| Nominal capacitive load | 50 pF |
| Equivalent Noise Charge (ENC) | 98e + 6.5e/pF |
| Outputs | Multiplexed pulse height |
| Test and calibration | Internal calibration circuit |
| Power consumption | 0.29 mW / channel |
