설명

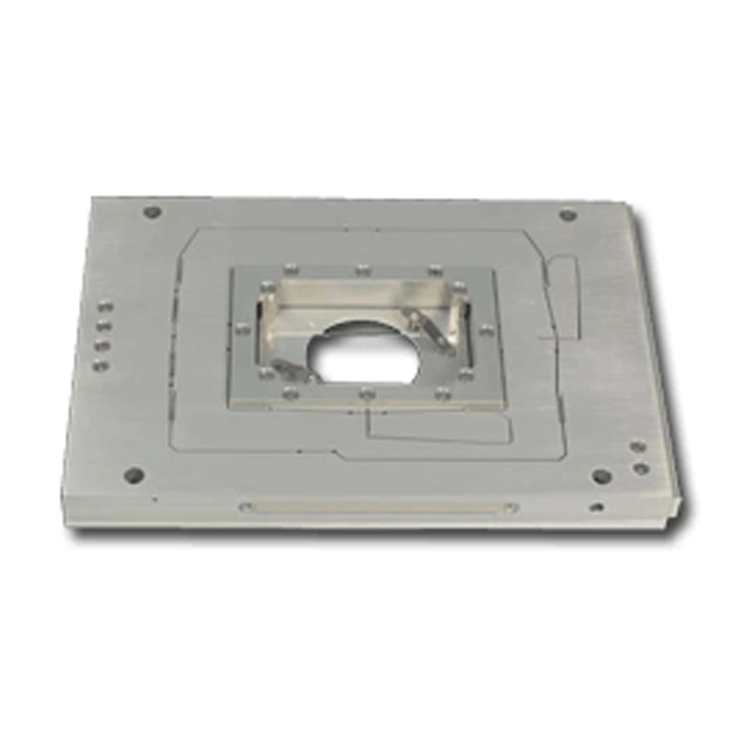

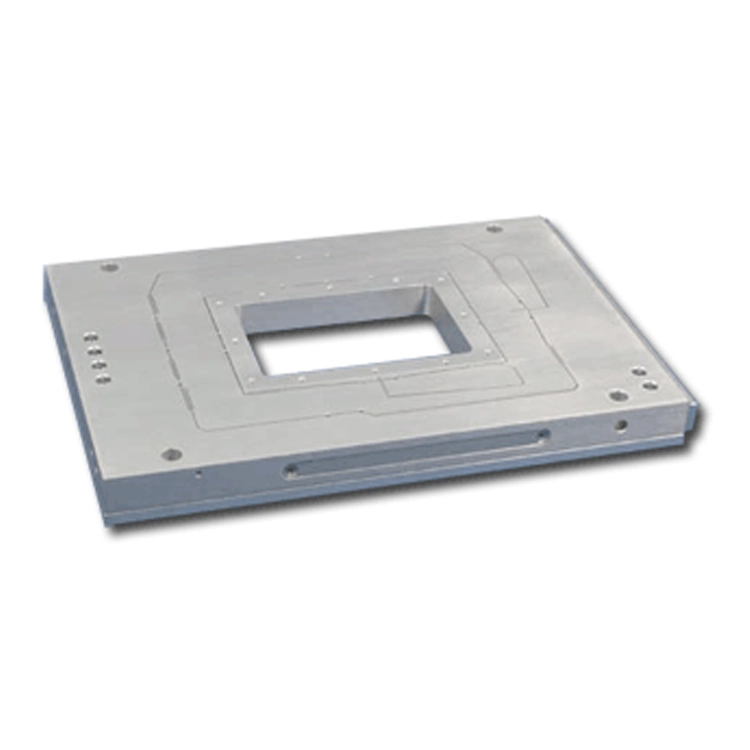

The Nano-LPS Series are ultra-low profile, three axis piezo nanopositioning systems with 100, 200, and 300 micron ranges of motion in all three axes. The low height of the Nano-LPS Series allows it to be easily integrated into existing inverted optical microscopes. Like the related Nano-LP Series, the Nano-LPS Series is ideal for demanding microscopy applications which require long range travel, fast scan rates, and three axes of motion. Uniquely suited for biological samples, the Nano-LPS has a large center aperture which is large enough to hold full size 3 inch (75mm) standard slides. Precise and repeatable motion is made possible through closed loop control combined with PicoQ® position sensors. See the Nano-BioS Series for a low profile, 2-axis piezo nanopositioning system.
The Nano-HS Series is a high speed, multi-axis, precision piezo nanopositioning system with picometer positioning resolution. Offering maximum versatility, the Nano-HS can be configured to provide XY or XYZ motion. Internal position sensors utilizing proprietary PicoQ®
Features | Typical Applications |
Technical Specifications | |
| Range of motion (Nano-LPS100) | 100 x 100 x 100 μm |
| Range of motion (Nano-LPS200) | 200 x 200 x 200 μm |
| Range of motion (Nano-LPS300) | 300 x 300 x 300 μm |
| Resolution (100/200/300 μm) | 0.2/0.4/0.6 nm |
| Resonant Frequencies | |
| X axis (100/200/300 μm) | 400/350/300 Hz ±20% |
| Y axis (100/200/300 μm) | 400/350/300 Hz ±20% |
| Z axis (100/200/300 μm) | 400/300/200 Hz ±20% |
| Stiffness | 1.0 N/μm |
| θ roll, θ pitch (typical) | ≤1 μrad |
| θ yaw (typical) | ≤3 μrad |
| Recommended max. load (horizontal)* | 0.5 kg |
| Recommended max. load (vertical)* | 0.2 kg |
| Body Material | Al (all models), Invar or Titanium (100 or 200μm only) |
| Controller | Nano-Drive® |
| * Larger load requirements should be discussed with our engineering staff. | |
