설명

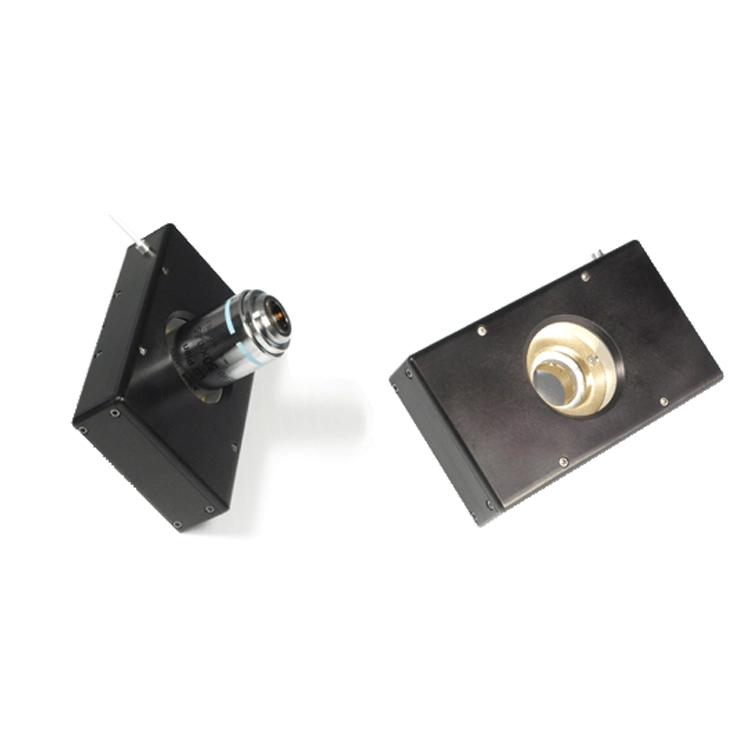

The Nano-F450 is the longest travel range piezo focusing element available for research microscopy. Ideally suited to high speed, long range confocal imaging, the Nano-F450 utilizes proprietary PicoQ® position sensor technology for absolute, repeatable position measurement and precise closed loop control. The Nano-F450 can be used as a stand-alone system or in conjunction with other Mad City Labs piezo nanopositioning stages. Quick mount adapters thread directly into the microscope turret, allowing the lens piezo nanopositioner to be clamped onto the adapter without having to rotate the entire assembly with the attached cable. Compatible with RMS, M25, and M26 quick mount threaded adapters, the Nano-F450 can be used on many different microscopes. The desired threads on the quick mount adapter are specified for each system when it is ordered. Extra adapters can be ordered separately.
Features | Typical Applications |
Technical Specifications | |
| Range of motion | 450 μm |
| Resolution | 0.9 nm |
| Resonant Frequency (no load) | 240 Hz ±20% |
| Resonant Frequency (Loaded with 150g lens) | 160 Hz ±20% |
| Resonant Frequency (Loaded with 250g lens) | 130 Hz ±20% |
| Stiffness | 1.0 N/μm |
| Recommended max. load* | 0.5 kg |
| Body Material | Aluminum and Brass |
| Threaded Adapters | RMS, M25, M26 |
| Controller | Nano-Drive® |
| * Larger load requirements should be discussed with our engineering staff. | |
배송안내
배송 지역 | 대한민국 전지역
배송비 | 2,500원 (50,000원 이상 결제시 무료배송)
배송기간 | 주말 공휴일 제외 2~5일
- 모든 배송은 택배사 사정으로 지연될 수 있습니다.
교환 및 반품 안내
- 고객 변심으로 인한 교환/반품은 상품 수령 후 14일 이내 가능합니다.
- 고객 귀책 사유로 인한 반품의 경우 왕복 택배비는 고객 부담입니다.
- 반품접수 기한이 지난 경우, 제품 및 패키지 훼손, 사용 흔적이 있는 제품은 교환/반품이 불가합니다.
