설명

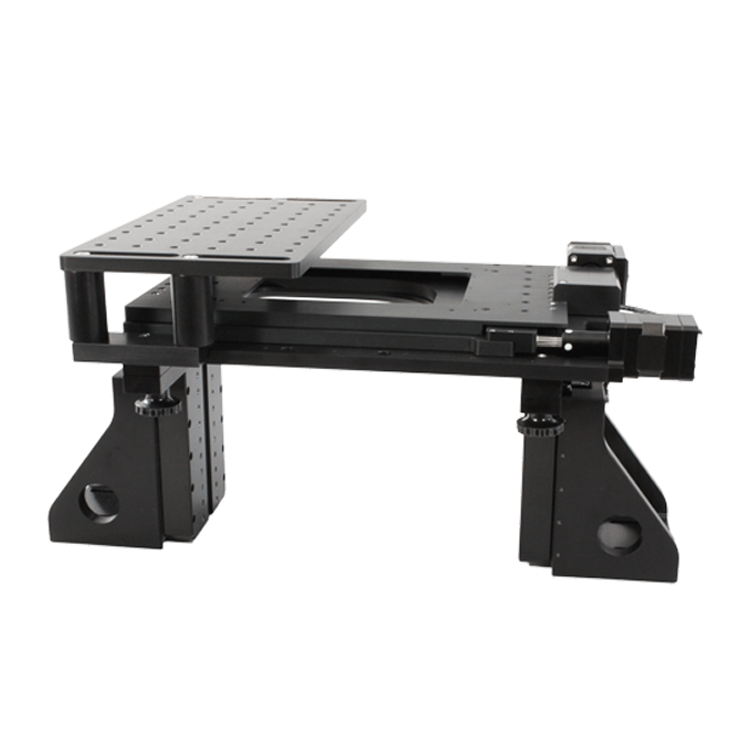

The Mad-Deck™ is a versatile stage platform designed for a variety of advanced microscopy techniques. It is ideal for microscopy and imaging applications that require free access above and below the sample plane. The Mad-Deck™ is available in a variety of models, all of which have automated Z axis travel. The Z-axis has been specifically designed to ensure planar motion. The heart of the Mad-Deck™ is our proprietary intelligent control resulting in ultra-precise and high stability stepper motor movement. These attributes also make the Mad-Deck™ compatible with our closed loop piezo nanopositioning systems allowing users to implement nanoscale imaging and microscopy techniques. The Mad-Deck™ is designed for use on all optical tables and can be customized for your application via standard options: encoders, breadboards, riser plinths, sample holders, etc. The Mad-Deck™ is driven by the Micro-Drive™ controller which utilizes a USB digital interface. This allows users to use the supplied LabView based software or develop their own VIs for automation. In addition, the Micro-Drive™ is compatible with other 3rd party software..
| Features | Typical Applications |
Technical Specifications | |
| Linear encoder resolution (optional) | 50 nm |
| Micoropositioning step size | 95 nm |
| Maximum speed | 1.5 mm/sec |
| Native Accuracy | 1.0 μm |
| Native Repeatability | < 100 nm |
| Body material | Aluminum |
| Controller | Micro-Drive™ |
| Computer interface | Bidirectional USB |
| Model | Travel (XY) | Travel (Z) | Manual Axis | Motorized Axis |
| Mad-Deck™ | 25 x 25 mm | 24 mm | XYZ | |
| Mad-Deck™/ LT | 50 x 50 mm | 49 mm | XYZ | |
| Mad-Deck™/ M | 25 x 25 mm | 24 mm | XY | Z |
| Mad-Deck™/ Z | 24 mm | Z |
