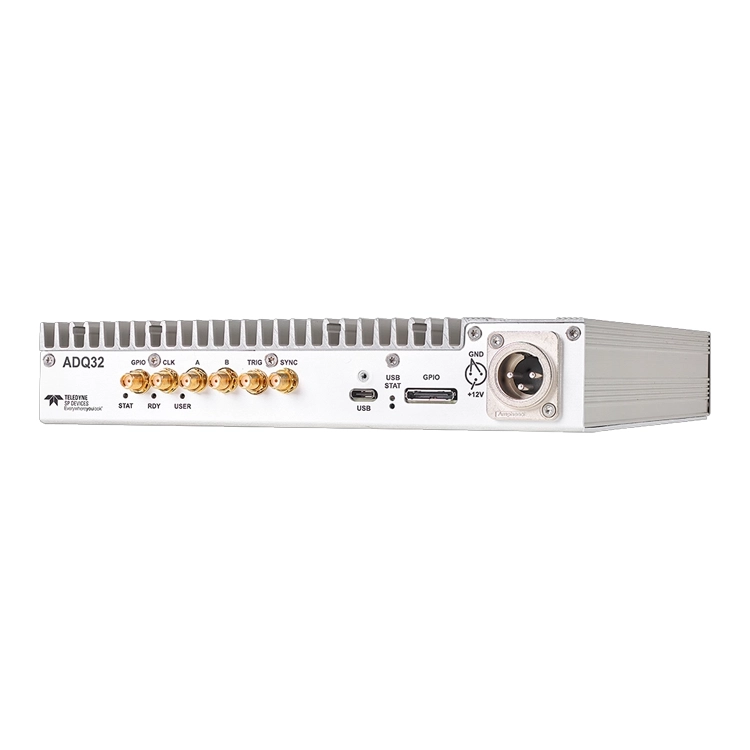

The ADQ3x-USB is a compact, space-efficient stand-alone digitizer designed for high-speed data transfer to a PC via USB 3.2. Its onboard FPGA performs real-time digital signal processing to reduce the data rate, ensuring seamless operation without compromising performance—even within the bandwidth limits of USB 3.2. This makes the ADQ3x-USB ideal for use with mini-PCs or laptops that lack PCIe slots, enabling the development of compact, system-level solutions for space-constrained environments such as mass spectrometers.
To further enhance analog performance, the digitizer can be positioned close to the detector, minimizing signal reflections and preserving signal integrity. For OEMs, Teledyne SP Devices offers tailored design services to accelerate integration and shorten time-to-market. See the web page and datasheet for each individual ADQ3 digitizer model for additional information and technical specifications.
Applications
| Hardware Options | |
| ADQ30-S1G0-BW1G0-USB | 1 channel, 1 GSPS, 1 GHz analog bandwidth, USB 3.2. |
| ADQ32-S2G0-BW1G0-USB | 2 channels at 2 GSPS, and 1 channel at 4 GSPS, 1 GHz analog bandwidth, USB 3.2. |
| ADQ32-S2G5-BW1G0-USB | 2 channels at 2.5 GSPS, and 1 channel at 5 GSPS, 1 GHz bandwidth, USB 3.2. |
| ADQ32-S2G5-BW2G5-USB | 2 channels at 2.5 GSPS, and 1 channel at 5 GSPS, 2.5 GHz analog bandwidth, USB 3.2. |
| ADQ32-S2G0-PDRX-USB | 1 channel, 2 GSPS, 760 MHz bandwidth, USB 3.2. Optimized for pulse data systems. |
| ADQ32-S2G5-PDRX-USB | 1 channel, 2.5 GSPS, 760 MHz bandwidth, USB 3.2. Optimized for pulse data systems. |
| ADQ33-S1G0-BW1G0-USB | 2 channels, 1 GSPS, 1 GHz bandwidth, USB 3.2. |
| ADQ33-S1G0-PDRX-USB | 1 channel, 1 GSPS, 760 MHz bandwidth, USB 3.2. Optimized for pulse data systems. |
| ADQ35-S5GO-BW2G5-USB | 2 channels at 5 GSPS, and 1 channel at 10 GSPS, 2.5 GHz bandwidth, 0.5 Vpp input range, USB 3.2. |
| ADQ35-S5G0-PDRX-USB | 1 channel, 5 GSPS, 2 GHz bandwidth, USB 3.2. Optimized for pulse data systems. |
